Product Details:
|
| Compatible Brand: | All Brands Mindray, GE | Scan Model: | B, B/M, B+Color, B+PDI, B+PW |
|---|---|---|---|
| Depth: | 20-100mm | Frequncy: | 7.5-10 Mhz |
| Elements: | 128 | Working Time: | 1.5-4 Hours Depends On Scan Mode |
| Working System: | Android / IOS / Windows Download For Free | Configuration: | Host* 1 Pc+ USB Cables *1pc |
| Color: | White | Battery: | Built-in Lithium |
| Battery Charging Time: | 1-2 Hours To Full | Warranty: | 12 Months |
| Highlight: | medical ultrasonic transducer,mindray ultrasound probes |
||
| Model | WCU01C3.5 | WCU01L7.5 |
| Type | Convex array probe | Linear array probe |
| scan mode | B, B/M, B+Color, B+PDI, B+PW | B, B/M, B+Color, B+PDI, B+PW |
| Frequency | 3.5/5.0MHz | 7.5/10MHz |
| Display Depth | 90~305mm | 20~100mm |
| Elements | 128 | 128 |
| Probe Radius | 60mm | / |
| Probe Length | / | 40mm |
| Wifi type | 2.4G/5G | 2.4G/5G |
| USB type | Type C | Type C |
| Image Adjust |
B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange); Color/PW: GN,PRF,WF,Steer,Box; |
B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange); Color/PW: GN,PRF,WF,Steer,Box; |
| Measure |
B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC); B+M: Heart Rate, Time, Distance; B+PW: Velocity, Heart Rate(2), S/D; |
B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC); B+M: Heart Rate, Time, Distance; B+PW: Velocity, Heart Rate(2), S/D; |
| Cinplay |
Auto and manual, frames can set as 100/200/500/1000 |
Auto and manual, frames can set as 100/200/500/1000 |
|
Puncture assist function |
in-plane puncture guide line, out-of-plane puncture guide line |
in-plane puncture guide line, out-of-plane puncture guide line |
| Image/video Storage | Store on mobile phones,Tablet PC | Store on mobile phones,Tablet PC |
| Power | Built-in lithium battery, Replaceable | Built-in lithium battery, Replaceable |
| Standby | 1.5~4h according to scan mode | 1.5~4h according to scan mode |
| Charging mode | Usb | Usb |
| Bootup |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
| Software |
Android / iOS / Windows Download for free |
Android / iOS / Windows Download for free |
|
Standard Configuration |
Host:1pcs, USB cable:1pcs |
Host:1pcs, USB cable:1pcs |
| Dimensions | 115(h)x70(w)x20(d)mm | 115(h)x60(w)x20(d) mm |
| Package size | 185(w) *55(h) *105(d)mm | 185(w) *55(h) *105(d)mm |
| Net weight | 125g | 102g |
| Gross weight | 600g | 600g |

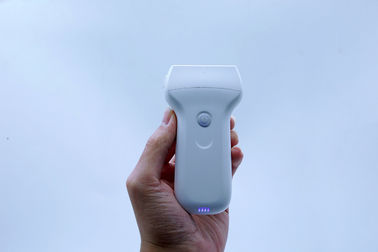

| Picture |
|
|
4. Warranty:
1)there is any quality problem when you get the products, we will send you the replacement .
5. The advantages of our products:
1) Attractive design, high quality and reasonable prices
2) Advanced processing technology
3) Advanced detection equipment
4) high quality raw material
6. Delivery details:
1) Our production cycle:
Item will be shipped within 3-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a) If order is not very big, we will send you by UPS, DHL, FEDEX, or TNT. Tracking number will be advised after delivery, all of express lead time is about 3-5 working days.
b) If order is big, we will advise you use Air Freight or Sea freight.
7. Payment details:
1) Payment terms:
a) 100% in advance for Small value .
b) 50% deposit, 50% before delivery for big value.
2) We can accept T/T, Western union, Paypal, L/C etc.
8. About Sample
1) if you have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one pcs of sample,
We can produce it for you .
9. Provide OEM service
1) if you have new design or idea, we can support you .
2) If you have the sample, we can produce it for you .
3) If you have the drawing , we can produce the product according to your drawings
10. Our leading products list :
1) SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG Electrode
5) Electrosurgical pencil and Electrosurgical pad
6) IBP Cable and IBP transducer
7) Temperature Probe and disposable Temperature Probe
8) NIBP Cuff and NIBP hose(NIBP tube)
9) Fetal transducer
10) disposable CTG belt and reusable CTG belt
11) EEG Cable and EEG hat (EEG cap)
12) original Ultrasound probe, compatible ultrasound probe, repair ultrasound probe
13) Needle Guide for Ultrasound probe
14) Pulse Oximeter
TEVEIK,a professional medical manufacturer of patient monitor accessories, which has complete systems of Production, R&D and Sales
with 11 years development. More than 100 skilled and experienced employees are innovative and fulfill our responsibility to supply better products and services.
We have a variety of high-quality
1) SpO2 sensor (Reusable/disposable)
2) ECG Cable
3) ECG/EKG Electrode
4) IBP Transducer
5) Fetal Transducer
6) Pulse Oximeter
7) NIBP Cuff
8) Medical Bandage
9) Ultrasound transducer
10) Repair Ultrasound transducer
All those products with ISO13485 2003 quality management and CE CFDA certificates.
Welcome to your enquiry and visit!
Q1.Are you factory?
A1.YES. we are an 11 years Medical Factory located in Shenzhen China.
Welcome to visit our factory at any time.
Q2.All products have a warranty?
A2.YES. All products are at least 1 year warranty.
Q3.What is the shipping way?
A3.DHL/Fedex/UPS/TNT/EMS/Sea Shipment, it’s up to you.
Q5: Why choose us:
1. we have 11 years manufacturing experences.
2. Get ISO13485, SGS, Latex free, Biocompatibility test report and so on.
3. We provide 1 year warranty
4. have professional QC team to check and guarantee the quality
5. Any product from our company will be well tested before delivery, to avoid international
after sales trouble, make customer satisfied and happy.
6. Lead time within 3 days
7. Our customers / legal distributors are from overseas.
Contact Person: Mr. Binger
Tel: 86 755 29475906 Ext. 808
Fax: 86-755-29060653
